ماكينة تفريغ الشحنات الكهربائية الساكنة Sodick AD 55 L

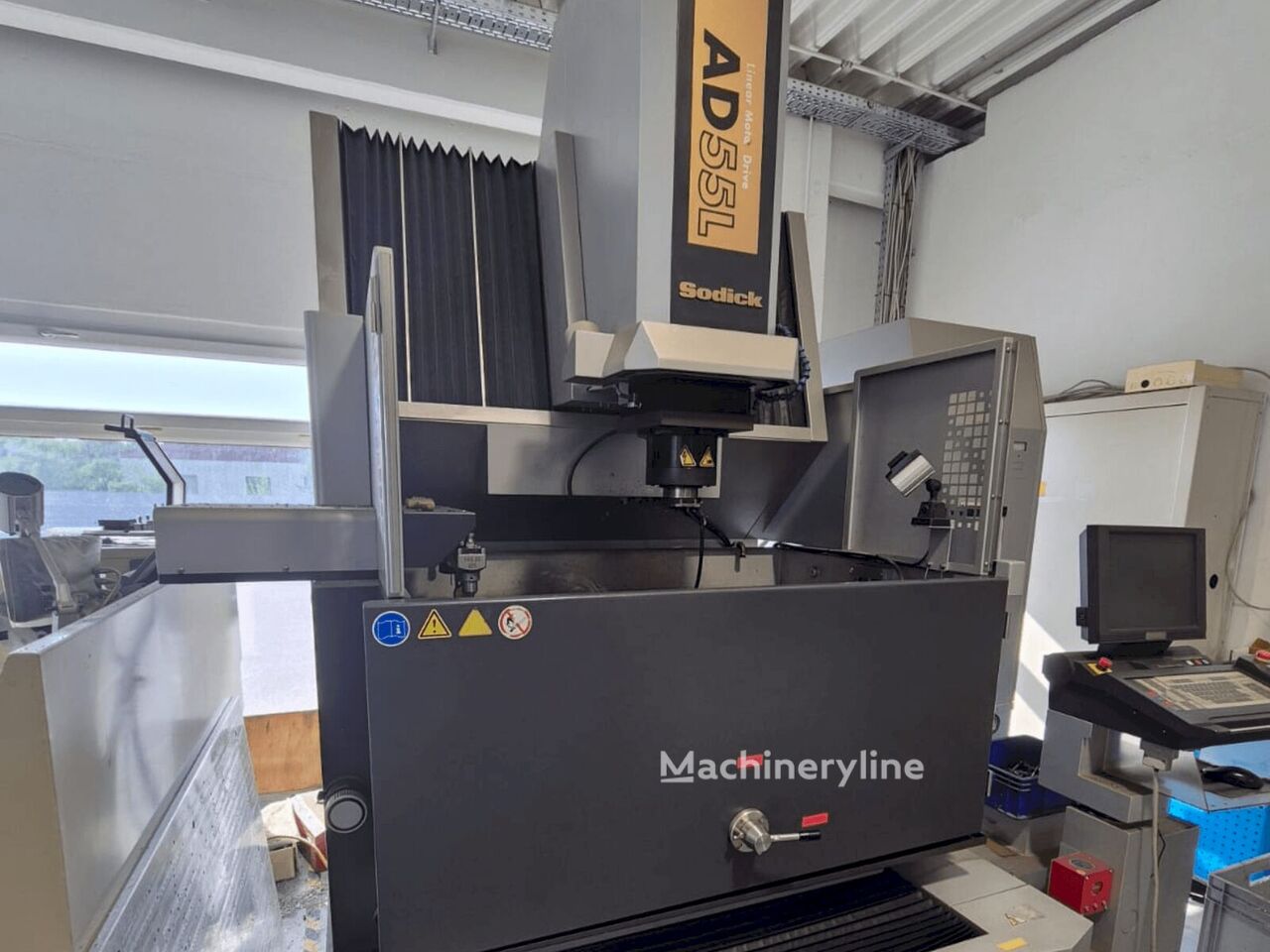

This Sodick AD 55 L die-sinking EDM machine was manufactured in 2016. It features a work tank with internal dimensions of 1200 x 800 x 500 mm and a capacity of 470 liters, supporting a maximum workpiece weight of 1000 kg. Equipped with a cooling unit for the linear motor, a C-axis, and a SGF generator unit, it offers robust performance for precision applications. Contact us for more information about this machine.
Additional equipment
Features: 10-year warranty on positioning accuracy, LN Professional, Cooling unit for linear motor, Glass scales (X, Y, Z axes), Remote control, USB port, Shuttle ATC, C-axis (SEC-10), SGF generator unit, 15" TFT touchscreen, Dielectric cooling unit, Automatic voltage stabilizer, Paper filters (2), Fire extinguisher, Mouse, LAN port, Work lighting
Machine Benefits
Technical Machine Benefits
Machine footprint (w x d): 3300 x 3535 mm
Work tank internal dimensions (w x d x h): 1200 x 800 x 500 mm
Work tank capacity: 470 l
Workbench size (w x d): 750 x 550 mm
Air flow: 100 nl/min
Power requirement: 3-phase 50/60hz, 10 kva
Extra Information
Machine still under power
application type: EDM
Location: Germany
machine type: Die-Sinking EDM Machine
Machine Depth: 2335 mm
