مقشطة رباعية الجوانب Weinig Unimat 23 E

No. 04556

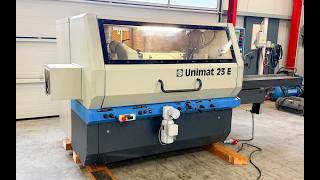

Four-sided planer WEINIG Unimat 23 E
Used, year of construction 2001
Spindles (bottom - right - left - top - bottom)
All spindles Ø 40 mm, spindle motors with mechanical brake
1. Bottom spindle (surfacing spindle): 5.5 kW, with rebating device
2. Right spindle (jointing spindle): 7.5 kW
3. Left spindle: shared drive with right spindle (7.5 kW)
4. Top spindle: 5.5 kW
5. Bottom spindle: 11 kW
Spindle speed 6000 rpm
Working range
Workpiece width with tool diameter 140 mm: 20 - 230 mm
With aluminium planing heads, a working width of 260 mm is possible
Workpiece height with tool diameter 163 mm: 8 - 120 mm
Infeed table with jointing fence, length 2,000 mm
Control and adjustment
ATS positioning control with Siemens SIMATIC OP7 operator panel
Left spindle: automatic positioning forward - backward
Top spindle: automatic positioning up - down
Motorised height adjustment of the feed, 1.1 kW adjustment motor with brake
Mechanical digital readouts on the spindle adjustments
Feed
Feed motor 3 kW with brake
Feed speed 6 - 36 m/min, infinitely variable via handwheel
Serrated feed rollers, driven by cardan shafts
Short workpiece package for processing short pieces
Top pressure rollers, swing-away
Axial adjustment of the feed rollers relative to the left spindle
Pneumatic pressure system with pressure reducing unit, 3 pressure regulators with gauges on the control desk
Pressure shoes and tables
Pressure shoe before top spindle, swing-away
Pressure shoe after top spindle with wooden insert
Table plate with wooden insert at bottom spindle 5
Anti-kickback device on the infeed table
Manual Waxilit pump for removing resin from the table
Central lubrication points on the front of the machine
Safety and noise protection
Full soundproof enclosure with viewing window and interior lighting
CE marking, BG-tested (wood dust tested)
Chip extraction connection diameters 140 mm and 200 mm
Power supply 400 V / 50 Hz
Scope of delivery
5 planing heads, mounted on the spindles
Various spare parts: feed rollers, spacer rings, drive belts, table inserts, operator tools
Complete technical documentation
Transport dimensions approx. 3800 x 2000 x 1900 mm LWH
Weight approx. 3500 kg
To avoid possible misunderstandings, an on-site inspection by appointment is possible and recommended
Sold as is
Technical specifications, condition description, year of construction and scope of delivery according to manufacturer’s brochure or previous owner, without guarantee
Subject to prior sale
For used machines, any warranty is excluded, the following applies: “sold as seen”
Payment terms: Prices plus VAT, payment before collection or shipment
Delivery terms: ex warehouse
