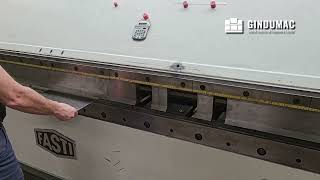

ماكينة ثني الألواح Schröder FASTI 215-40-4

This SCHRODER-FASTI 215-40-4 was manufactured in 1994. A reliable profile bending machine, ideal for various metalworking applications. Despite its age, it remains a robust choice for precision cutting tasks. Consider the SCHRODER-FASTI 215-40-4 machine we have for sale. Contact us for more information.
Additional equipment
Flat rail: 18 mm wide
Centre rail: 45°
Reinforcement rail: 36 mm
Stroke of the upper beam: 350 mm
Adjustability of the motorised bending beam: 80 mm
Adjustability of the motorised lower beam: 80 mm
Motor power for bending beam adjustment/lower beam adjustment: 0.75 kW
Machine Benefits
Technical Machine Benefits
Max sheet thickness: 4 mm at tensile strength 400 n/mm²
Equipped with motorized adjustments for bending and lower beams
High clamping pressure speed of 30%
Robust and adjustable bending capabilities
Steering: cnc-fasti-matik 4000
Extra Information
Reference dimension: 2024.7 mm
largest dimension: 2000 mm
smallest dimension: 16 mm
smallest dimension 2: 46 mm
finger size: 150 mm
finger stop position: 155.9 mm
dead zone: 0.5 mm
AC parameters and additional calibration and speed settings provided for precision and efficiency
application type: Rolling
Location: Germany
machine type: Profile Bending Machine
Marke: SCHRODER-FASTI
